Haitai Battery Swapping Cabinet

Built on the HAITAI battery swap platform, big data platform, and blockchain technology, we specialize in developing battery swap cabinet control systems, which include the PMS (Power Management System) for managing individual charging slots and the CMS (Cabinet Management System) as the central control system overseeing cabinet operations, cloud communication, and internal module management. The HAITAI cabinet control system has been widely adopted by major cabinet manufacturers across China.

  • icon Supports multiple configurations, including 6-slot, 8-slot, and 12-slot options.
  • icon Cabinets of different configurations can be dynamically interconnected.
  • icon Supports data communication modules for multiple countries.
  • icon Supports customization requirements.

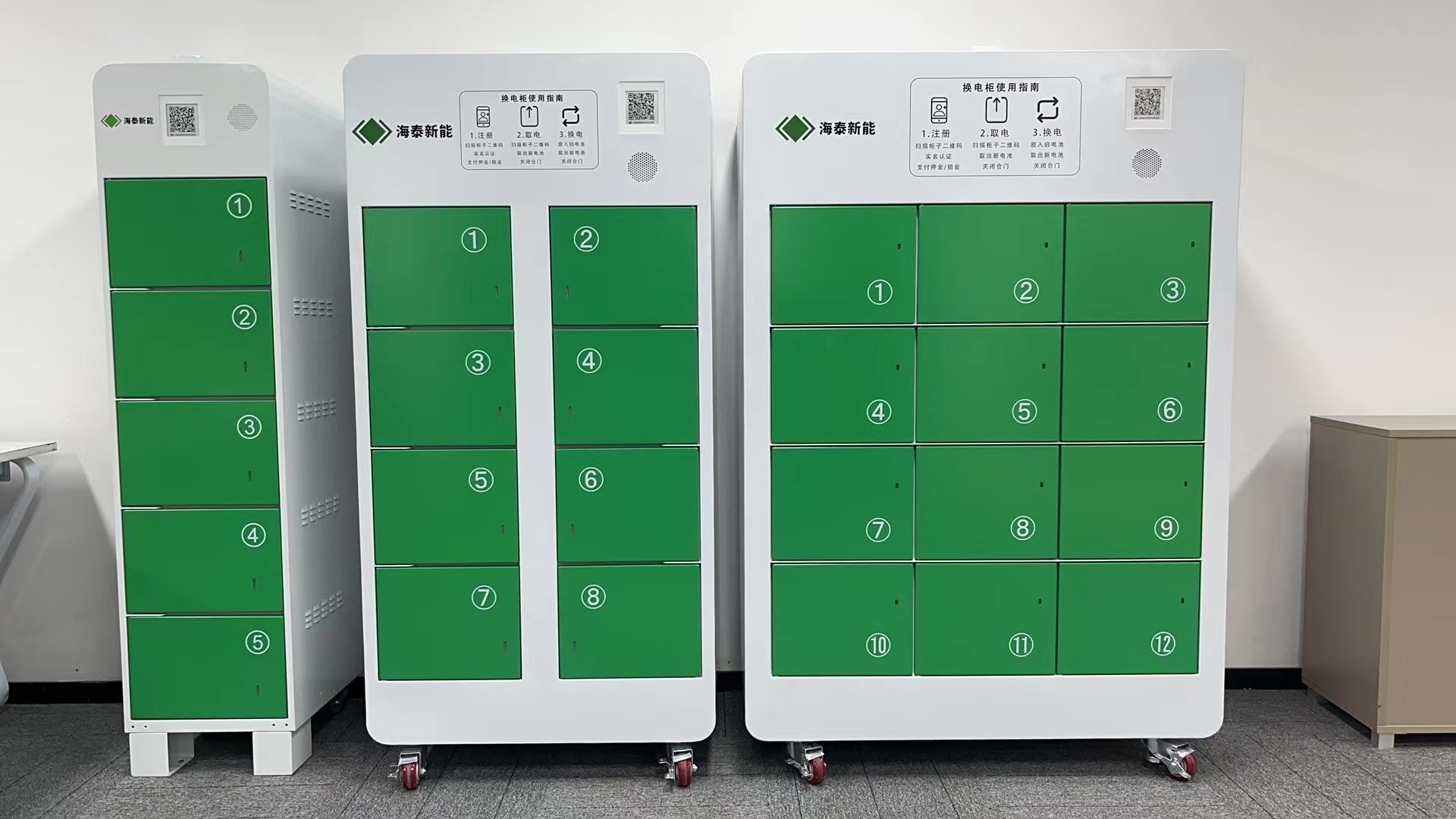

Battery Swapping Cabinet Models

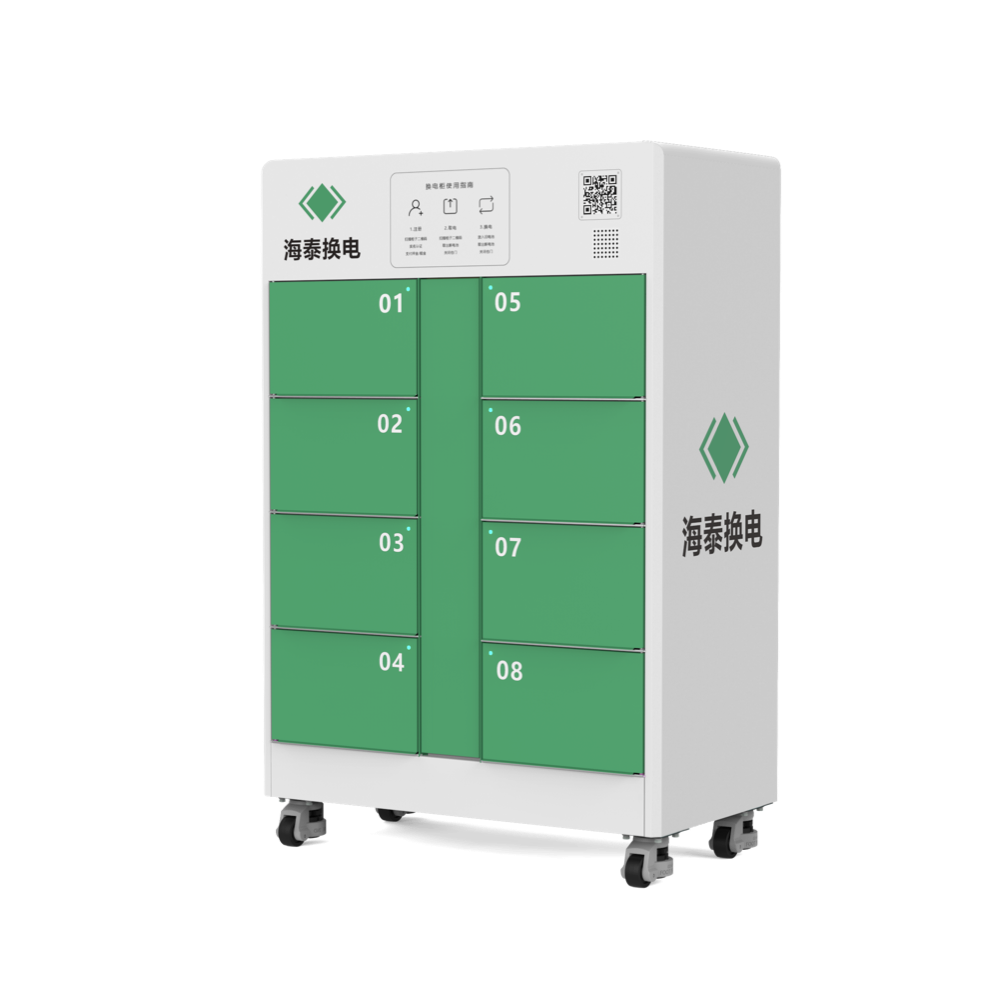

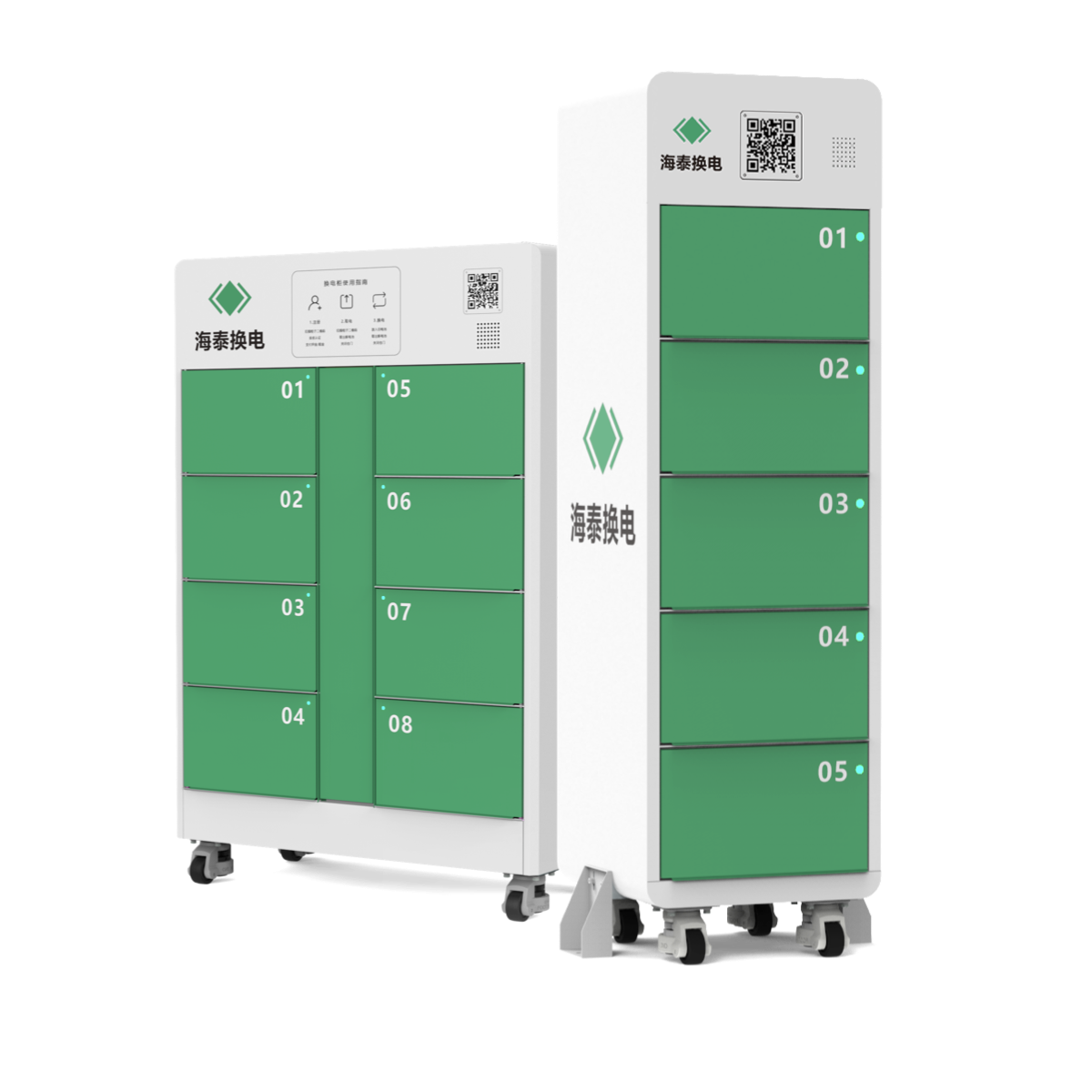

8-slot cabinet

Specifications
4G Flash 2M Voice 485 communication CAN communication

The 8-slot cabinet can serve up to 20 users per day, typically placed at large electric motorcycle retail stores or small mall entrances. It is flexible, with options for external or internal cameras. In case of a power outage, the internal battery can provide backup power to ensure smooth swapping. It supports 48V/60V/72V lithium iron phosphate (LiFePO4) and ternary lithium batteries.

IP54

Protection level

20 people

Support users

8 slots

Number of slots

6-slot mini cabinet

Specifications
4G Flash 2M Voice 485 communication CAN communication

The 6-slot cabinet serves up to 15 users per day, often at smaller retail stores or mall entrances. It is highly flexible and supports dynamic parallel connection of multiple units. External or internal cameras can be installed as needed. The internal battery also provides backup power during outages, supporting 48V/60V/72V LiFePO4 and ternary lithium batteries.

IP54

Protection level

15 people

Support users

6 slots

Number of slots

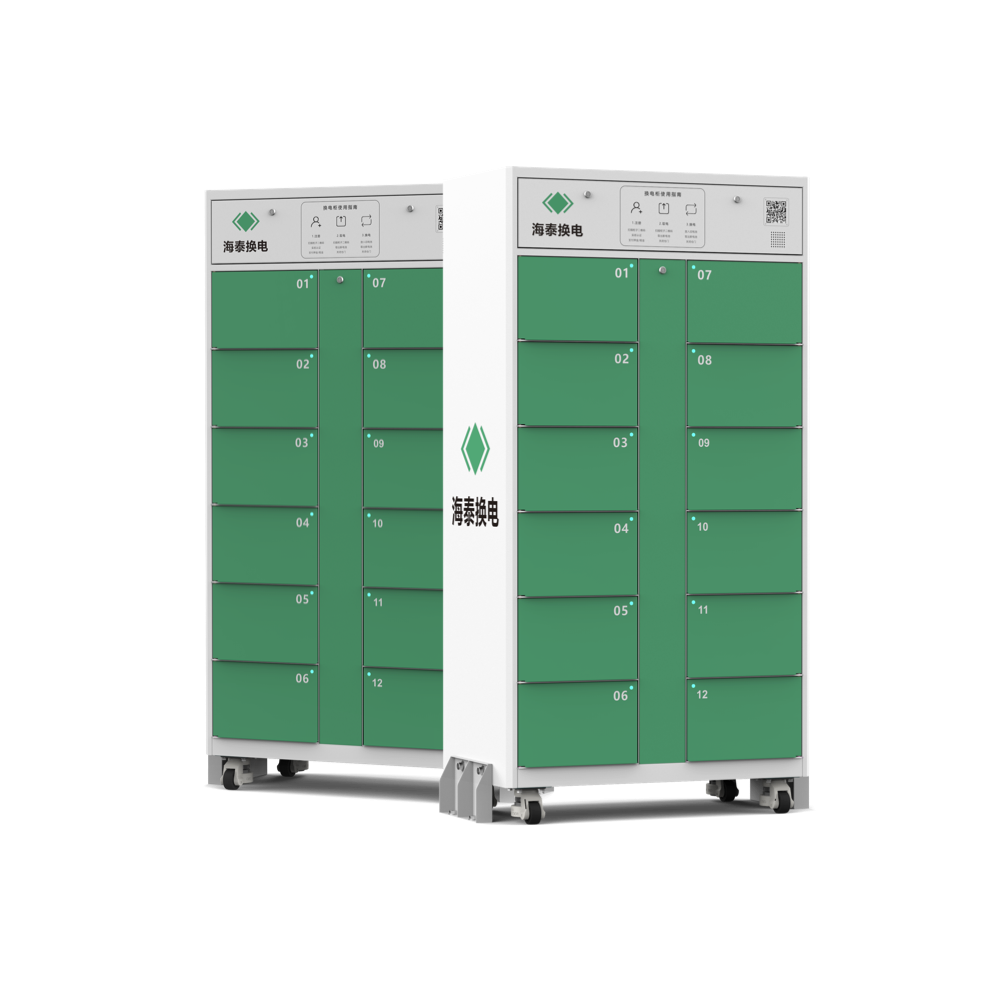

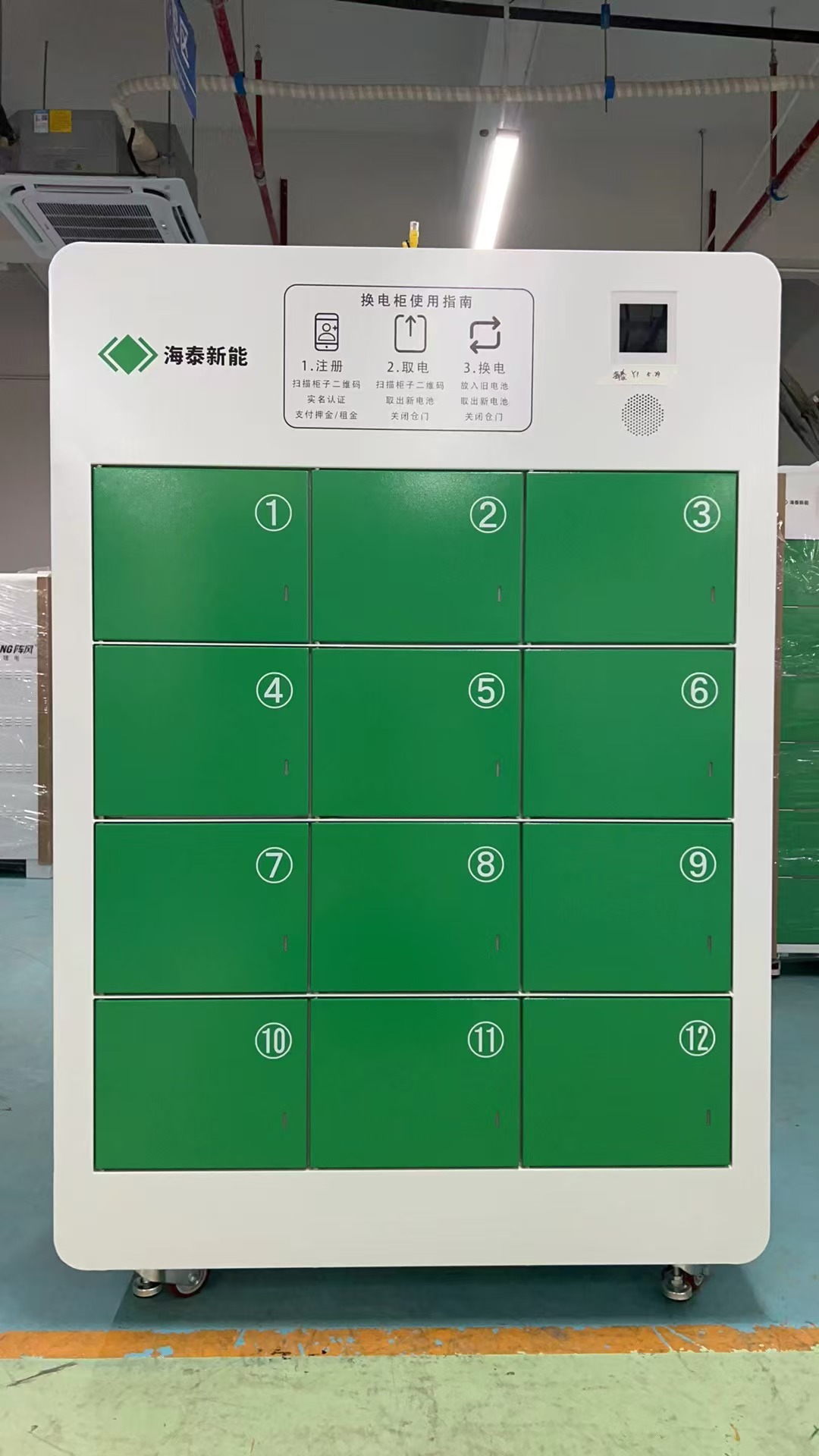

12-slot cabinet

Specifications
4G Flash 2M Voice 485 communication CAN communication

The 12-slot cabinet can serve up to 30 users per day, typically deployed at large electric motorcycle retail stores or busy mall entrances. It is ideal for high-traffic areas and supports external or internal cameras. In case of a power failure, the internal battery ensures normal swapping. It supports 48V/60V/72V LiFePO4 and ternary lithium batteries.

IP54

Protection level

30 people

Support users

12 slots

Number of slots

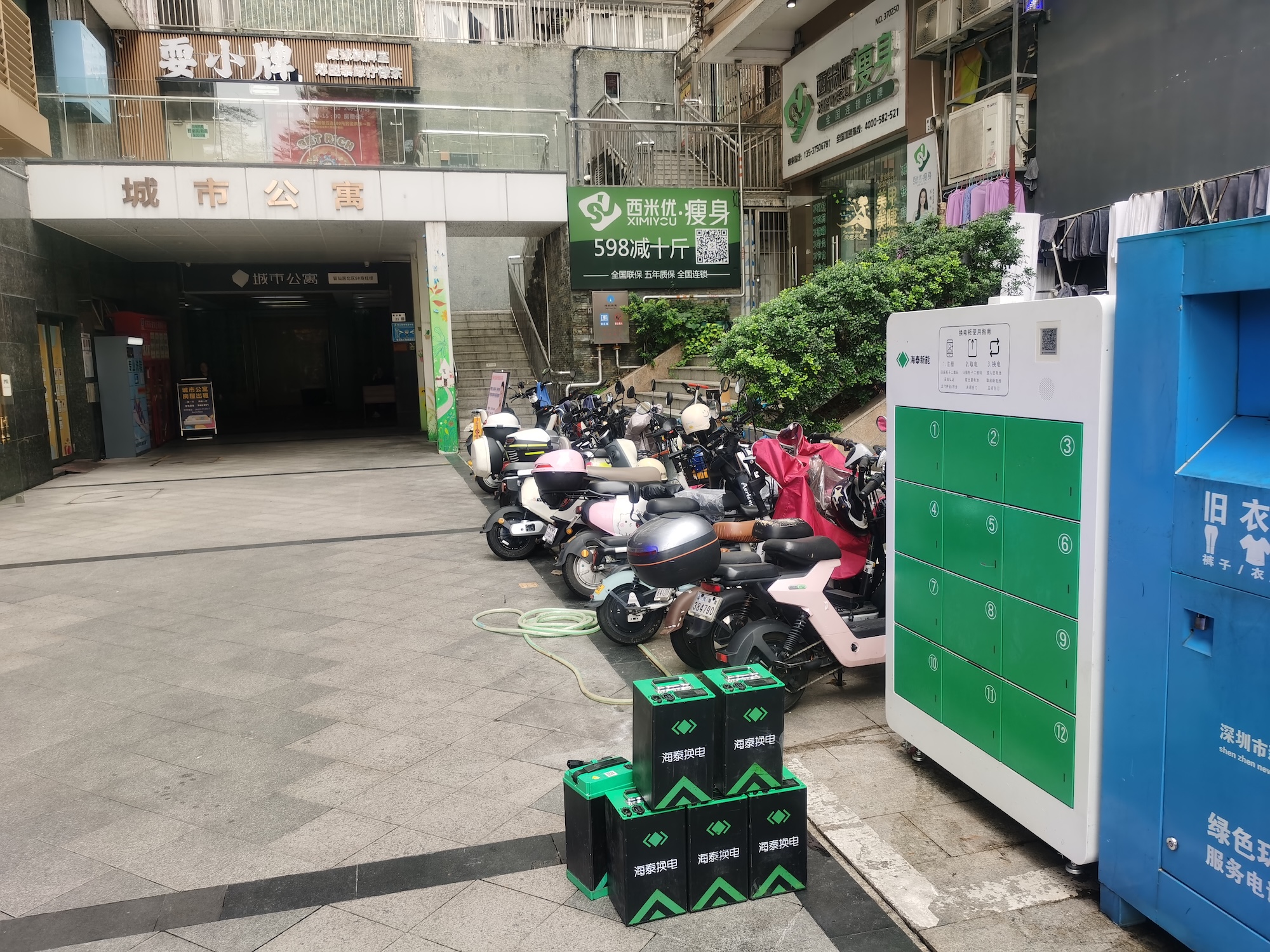

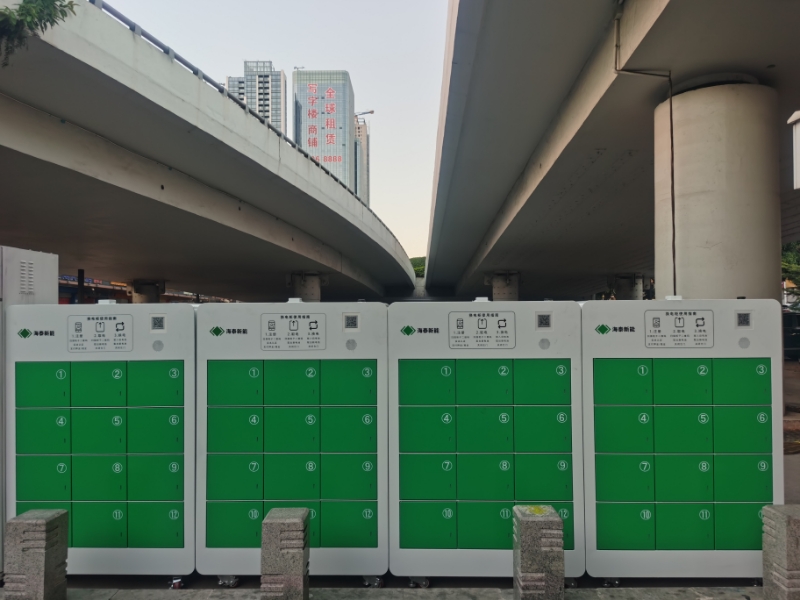

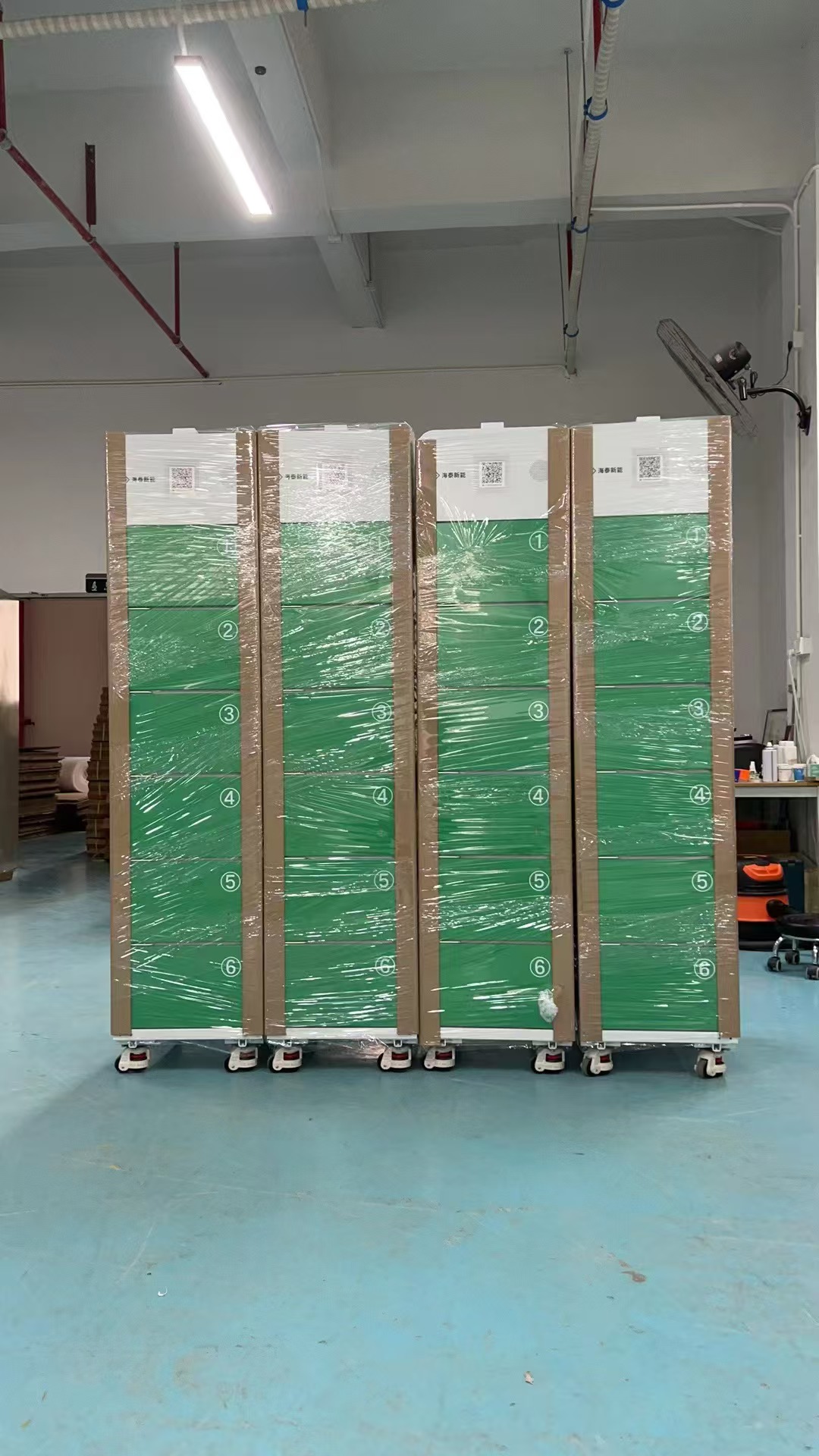

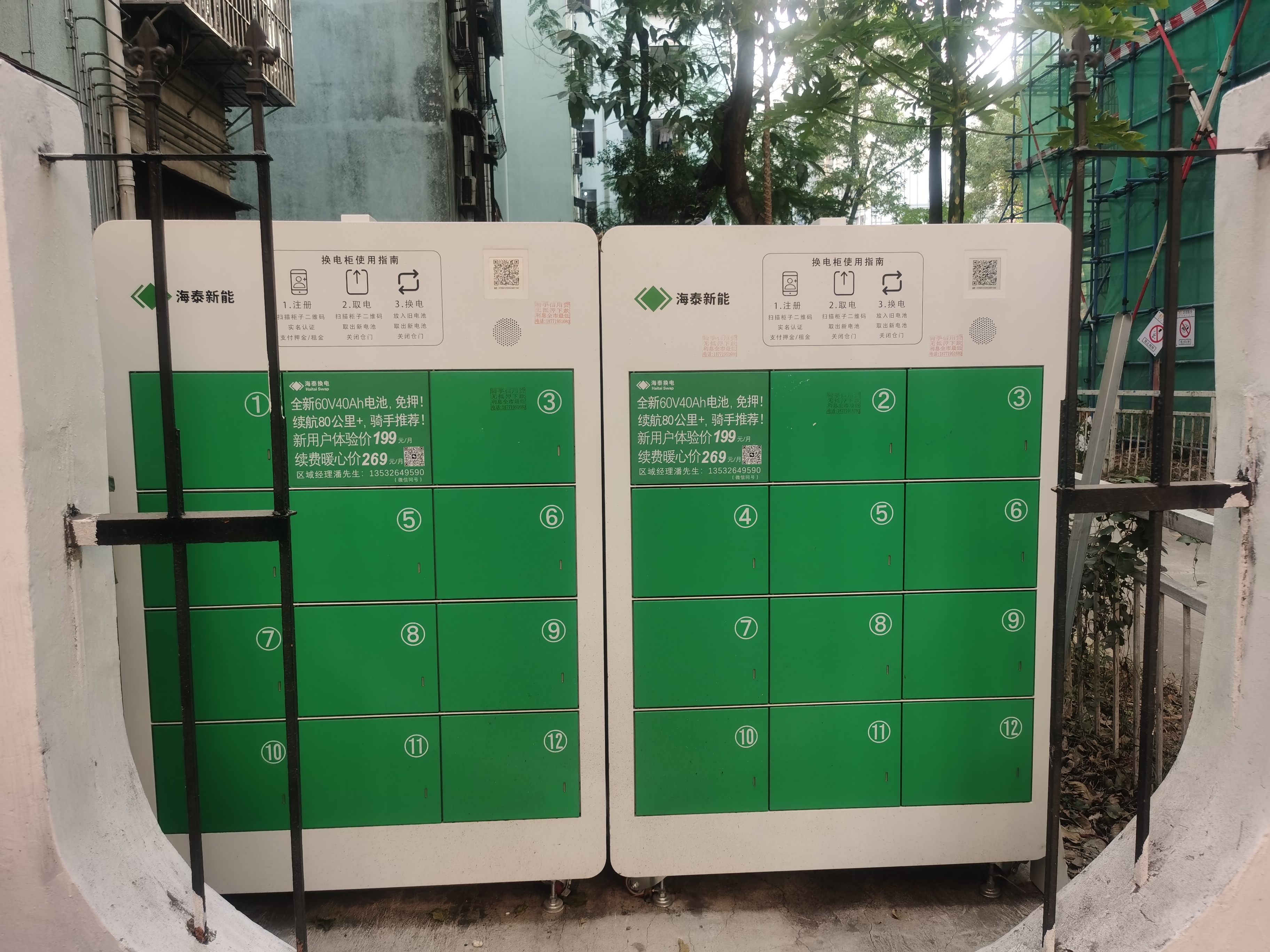

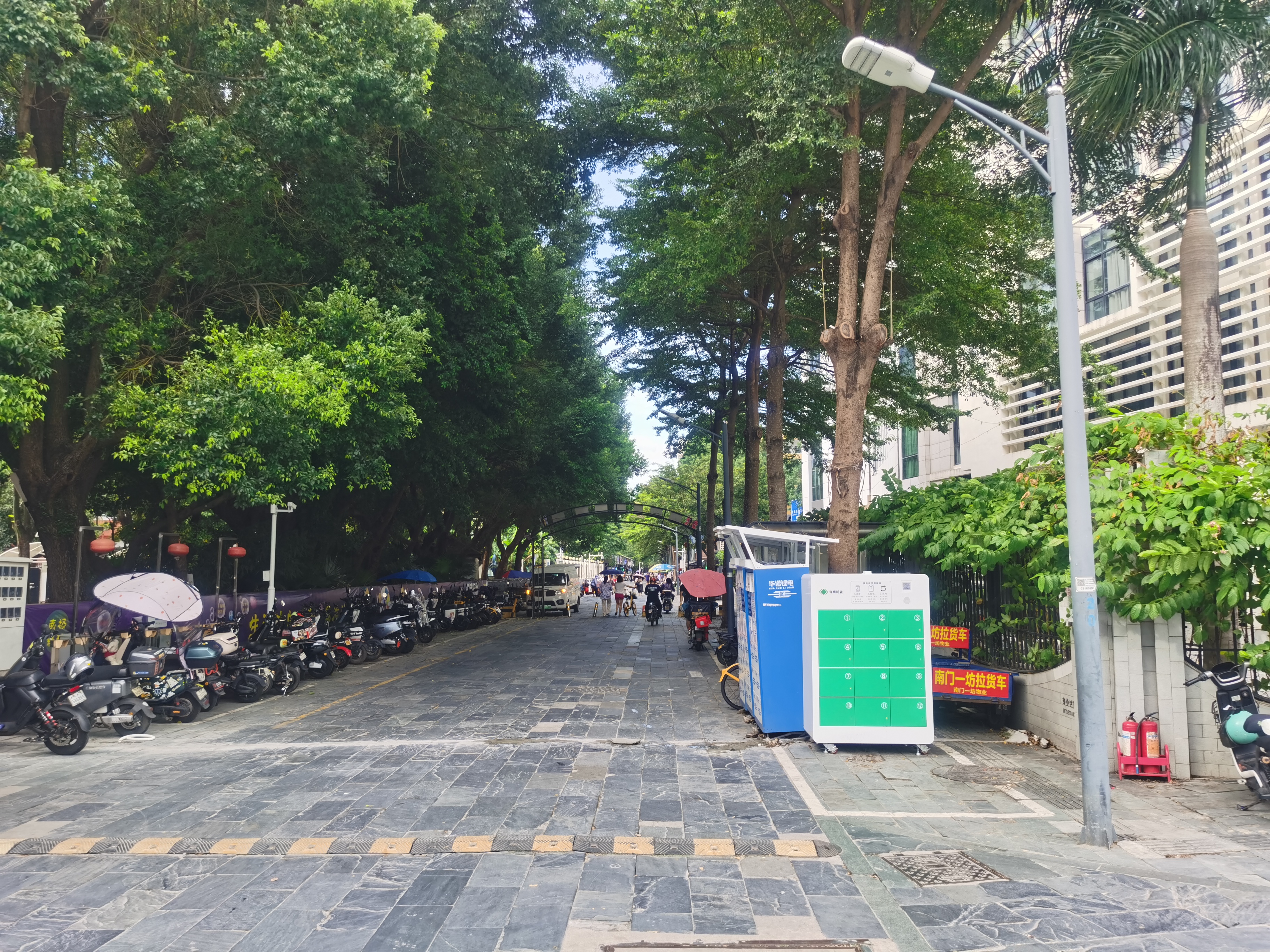

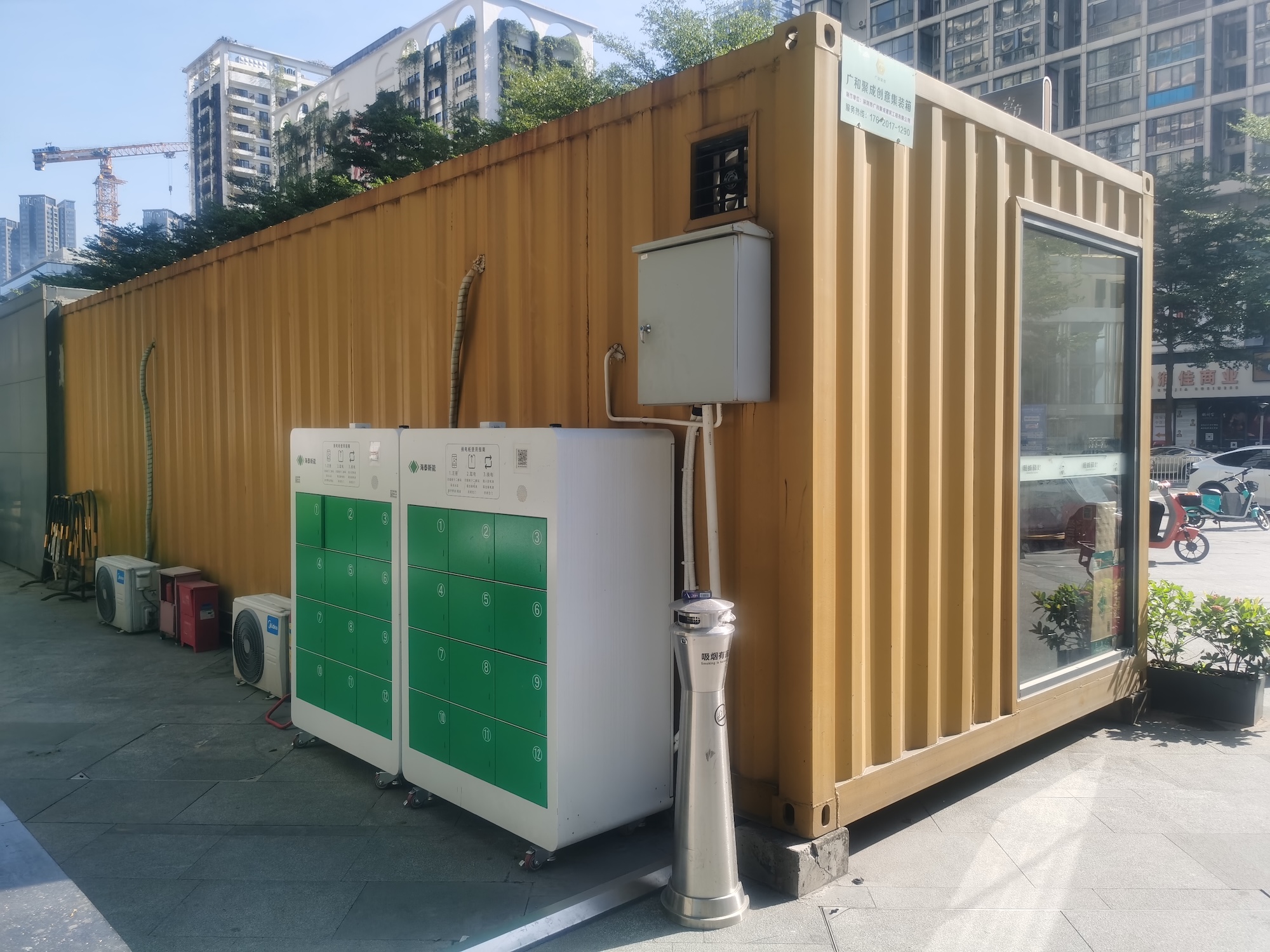

Moments in Everyday Life
